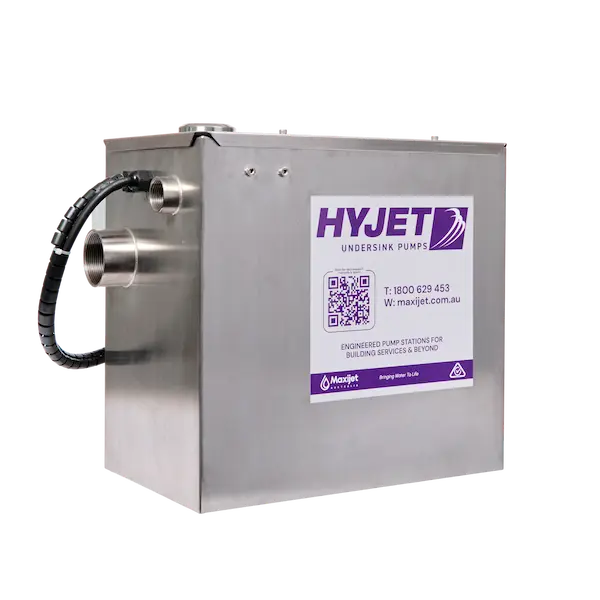

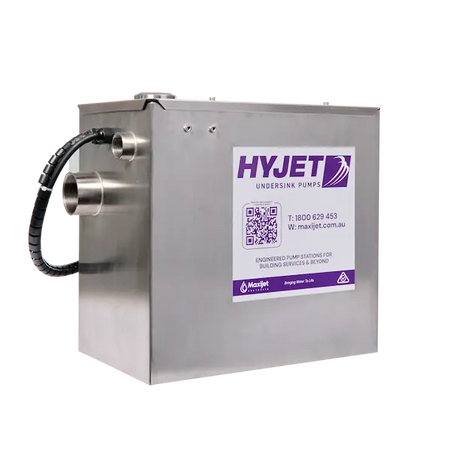

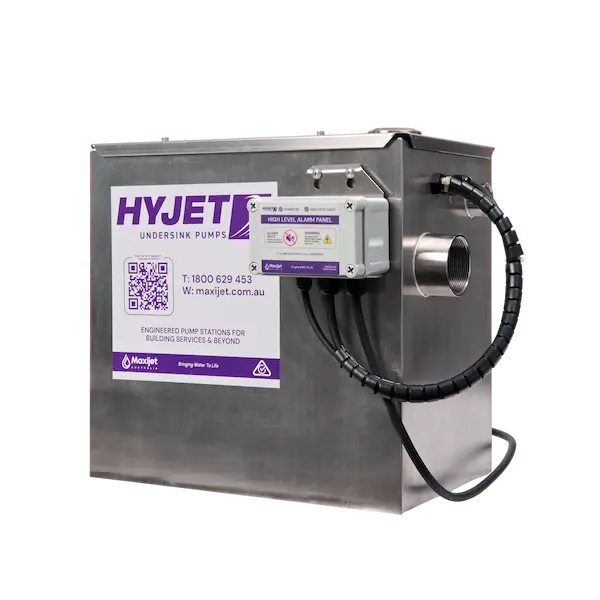

The Hyjet Minilift 40 is a 40 L 304 stainless steel undersink pump station for moving wastewater where gravity drainage is not possible. It includes an automatic submersible drainage pump, integrated discharge pipework, a non-return valve and a built-in high level alarm as standard. Handles soft solids under 8 mm. Optional shut-off alarm packages add low voltage protection against overflow, with no hard wiring needed.
Important: Not designed for raw sewage applications.
Choose your alarm option
| Variant | SKU | What it does on high level |
|---|---|---|
| Standard | HML40-A | Audible and visual high level alarm |
| Dishwasher Shut-off | HML40-A-D1 | Alarms and isolates power to the dishwasher to stop further inflow |
| Valve Shut-off | HML40-A-S1 | Alarms and pulse-closes a 12Vdc latching solenoid valve to stop mains water. Fails safe closed on power loss |
| Valve & Dishwasher Shut-off | HML40-A-D1-S1 | Alarms, closes the solenoid valve and isolates dishwasher power. Fails safe closed on power loss |
Applications
- Wastewater removal where gravity drainage is not possible
- Under-sink installation in kitchens and amenities
- Continuous water transfer or drainage
- Wastewater with soft solids under 8 mm particle diameter
Features & Construction

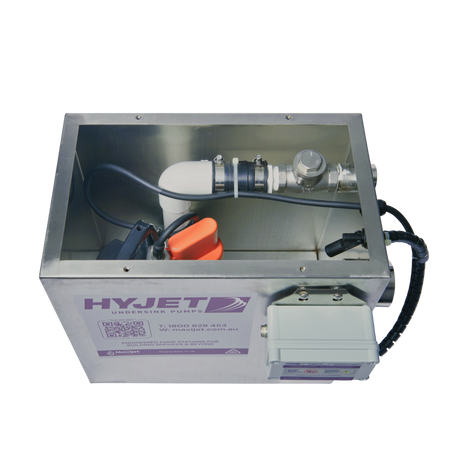

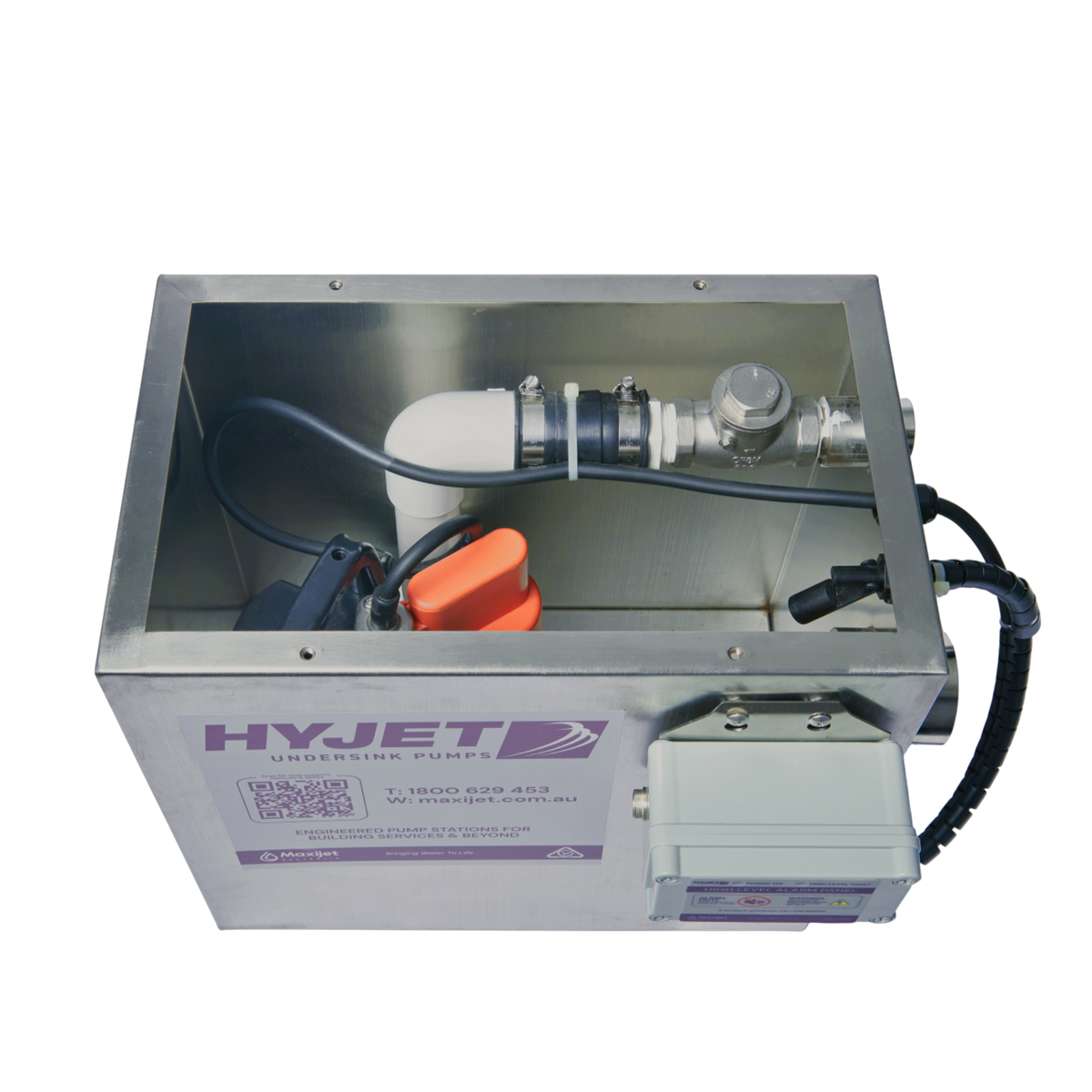

- 304 grade stainless steel collection chamber
- Automatic submersible drainage pump with float operation
- Integrated discharge pipework and non-return valve

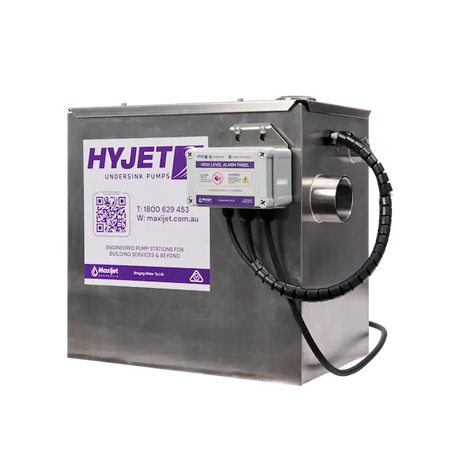

- Built-in high level alarm with LED lights and mute button, pump pre-connected
- Adjustable float switch for custom start and stop levels
- Blockage-resistant impeller design for dirty water
- Built-in thermal overload protection
- Floor mounted, compact under-sink design
- RCM E9333
- 1 year warranty

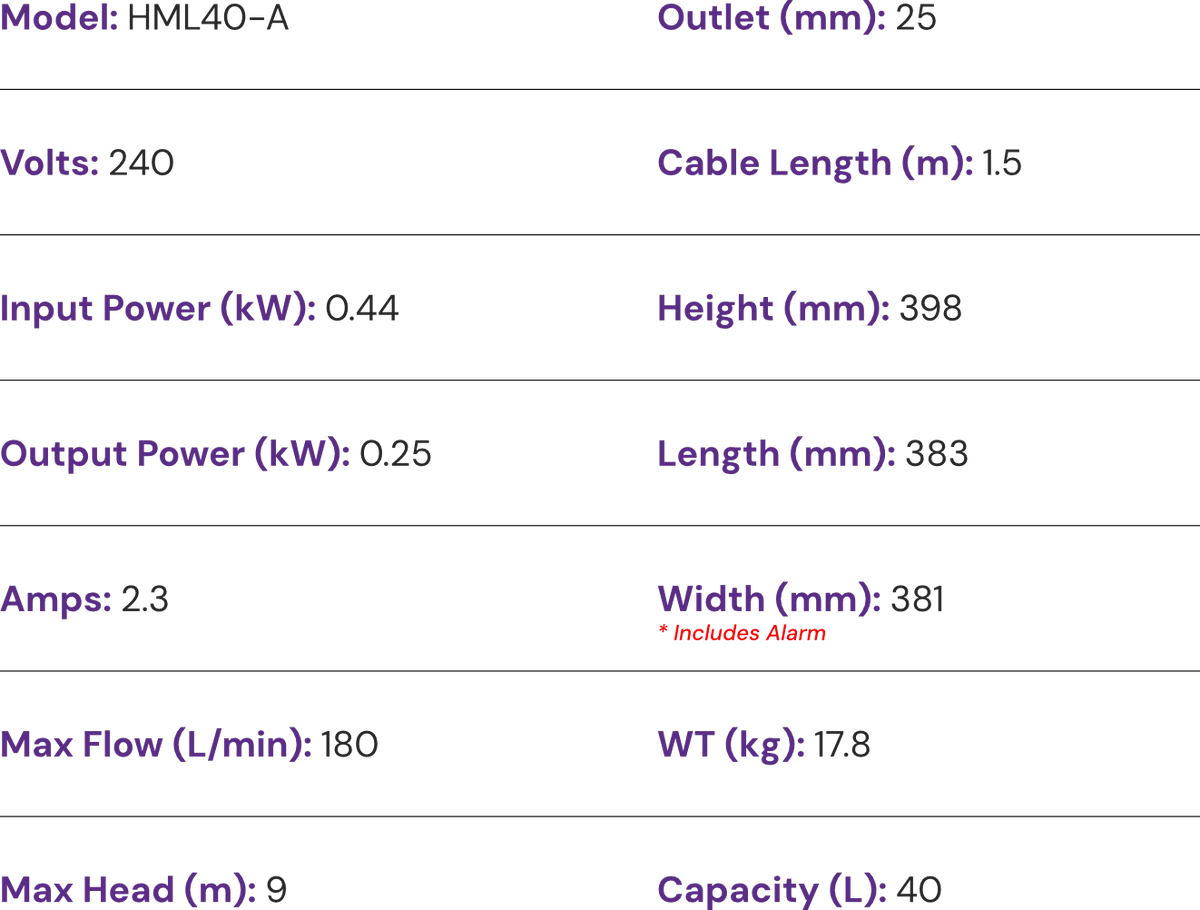

Technical Data
| Capacity | 40 L |
| Voltage | 240 V |
| Input power | 0.44 kW |
| Output power | 0.25 kW |
| Current | 2.3 A |

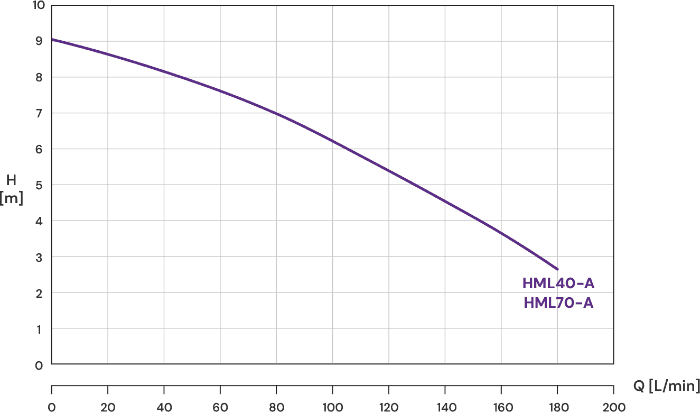

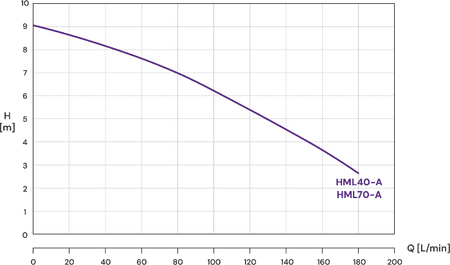

| Max flow | 180 L/min |
| Max head | 9 m |
| Outlet | 25 mm |
| Cable | 1.5 m |
| Tank material | 304 grade stainless steel |
| Dimensions | 398 mm H x 383 mm L x 381 mm W |
| Weight | 17.8 kg |
| Run capability | 25 mm PVC PN12 at 20 L/min: up to 403 m run at 1 m head, 27 m run at 8 m head |
Shut-off alarm controller (D1 / S1 variants)
| Enclosure | IP54 weatherproof polycarbonate with mounting brackets |
| Inputs | Digital 12Vdc input for float switch |
| Included | 10 Amp 3 pin 1.5 m power supply lead, magnetic float switch with 10 m cable (pre-connected) |
