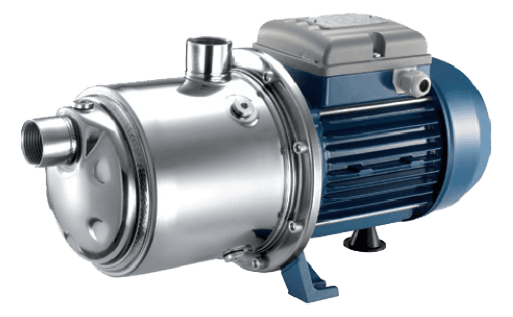

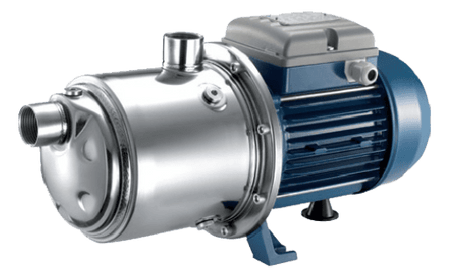

Hyjet HM5-5 Horizontal Multistage Pump

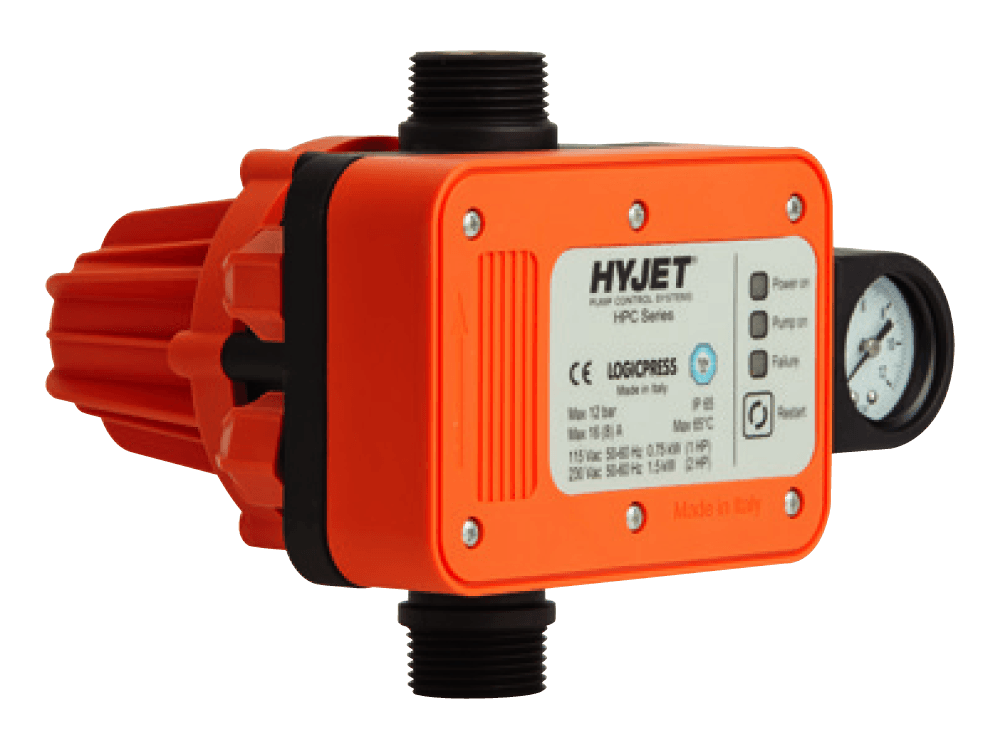

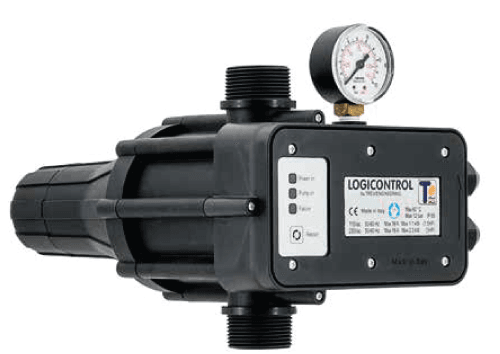

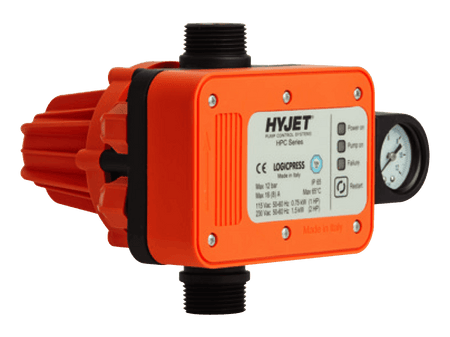

The Hyjet HM5-5 is a 1.1 kW 240V stainless steel AISI 304 horizontal multistage pump rated to 140 L/min, made in Italy by Pentax. Built for pressure boosting, irrigation, water treatment, heating and air conditioning and washing systems, and AS4020 certified for potable water. Available as pump only or supplied with a Hyjet pressure controller.

Choose your configuration

Applications

• Pressurising systems and pressure boosting
• Irrigation
• Drinking and glycol water
• Water treatment
• Heating and air conditioning
• Washing systems

Features & Construction

• Stainless steel AISI 304 pump body and impellers
• Aluminium motor bracket
• Ceramic-graphite mechanical seal (6 impellers or fewer), graphite-silicon carbide (7 or more)
• Stainless steel AISI 303 motor shaft
• Liquid temperature 0 to +110C, max operating pressure 8.5 bar
• 2 pole induction motor, 240V-50Hz with thermal protection
• Insulation class F, IP44
• AS4020 certified for potable water
• Made in Italy by Pentax Pumps
• 2 year warranty

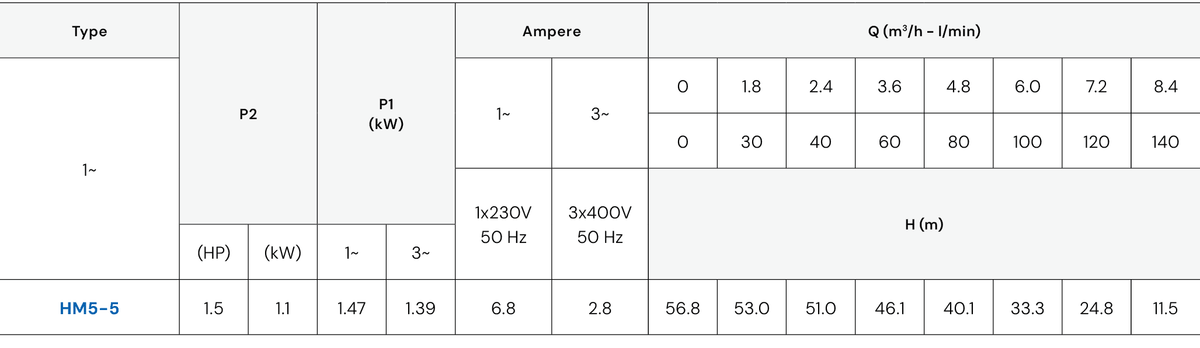

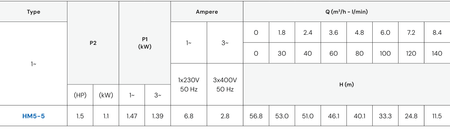

Technical Data
