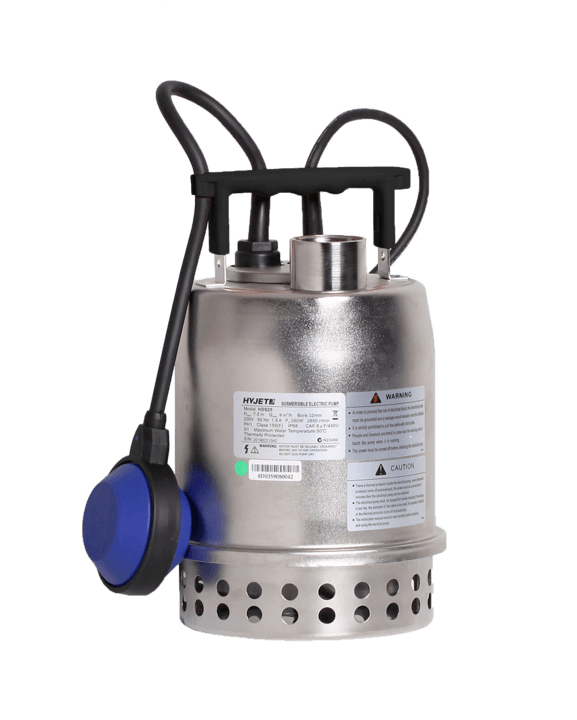

Hyjet HDS25-AV Stainless Steel Submersible Drainage Pump
Couldn't load pickup availability
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Got questions?
Feel free to get in touch
Ask an expert!
The Hyjet HDS25-AV is a 0.25 kW all stainless steel vortex submersible pump delivering 150 L/min to 7.5 m of head, with a vertical magnetic float. A double mechanical seal and AISI 304 construction throughout suit it to stormwater pits, lift wells, plant room sumps, water tanks and pools. Handles suspended solids up to 10mm.
Applications
- Stormwater pits
- Lift wells and plant room sumps
- General water transfer for water tanks
- Swimming pools
Features & Construction
- AISI 304 stainless steel pump body, motor casing, impeller and shaft
- Double mechanical seal - upper carbon ceramic / NBR, lower SiC/SiC/NBR in oil chamber
- Handles suspended solids up to 10mm
- Max operating depth 10m, max fluid temp 40C
- Two pole induction motor, 50Hz 1Ph 240V
- IPX8, insulation class F, thermal overload protection
- 10m power cable
- 2 year warranty

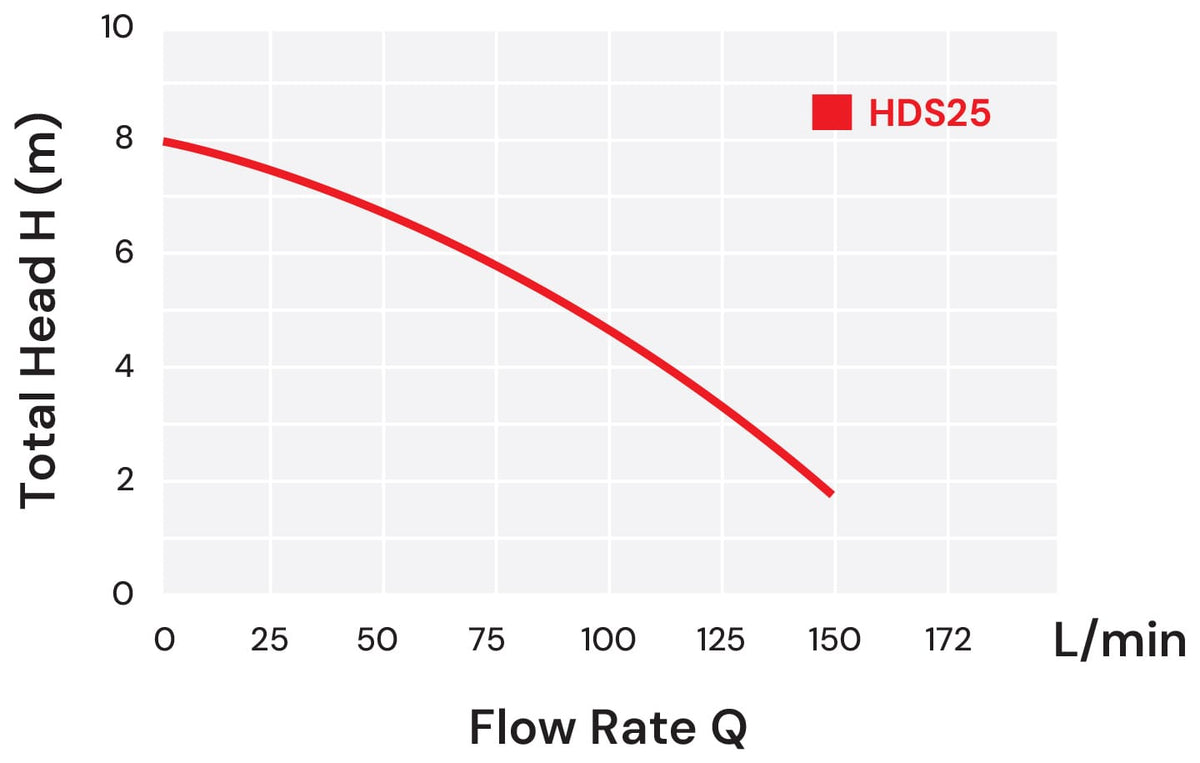

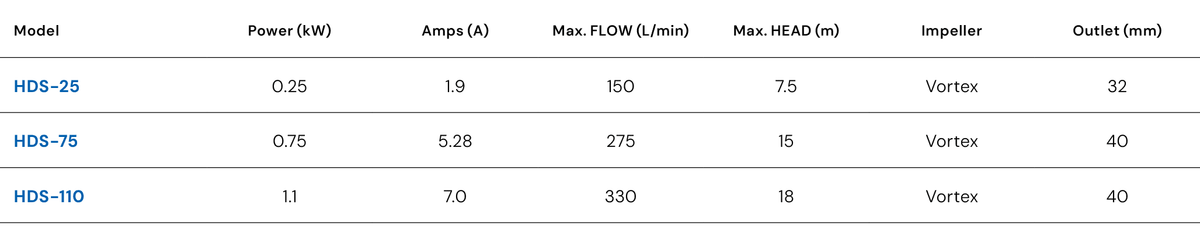

Technical Data
| Power | 0.25 kW |
| Current | 1.9 A |
| Max flow | 150 L/min |
| Max head | 7.5 m |
| Impeller | Vortex |
| Outlet | 32 mm |
| Suspended solids | 10 mm |
| Max operating depth | 10 m |
| Max fluid temperature | 40C |
| Float | Vertical float, not adjustable |
| Cable | 10 m |
| Dimensions | 290mm H x 140mm W |
| Weight | 5 kg |
