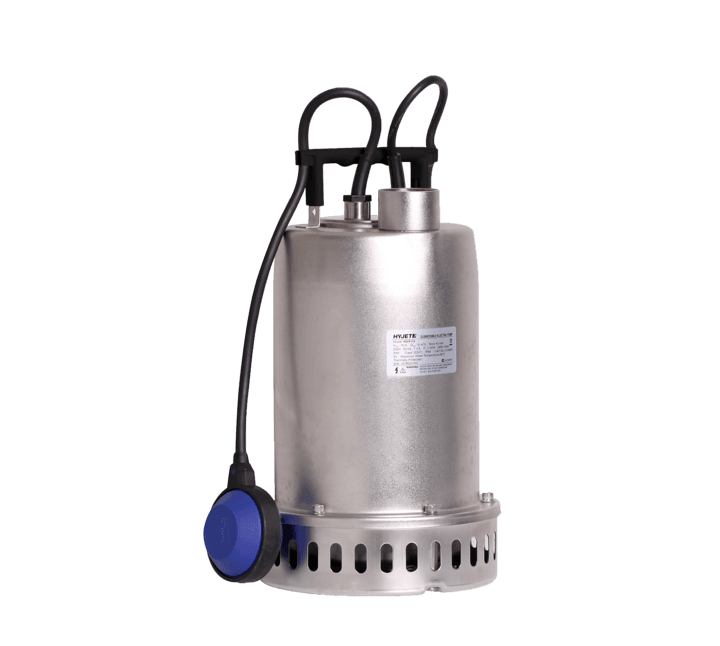

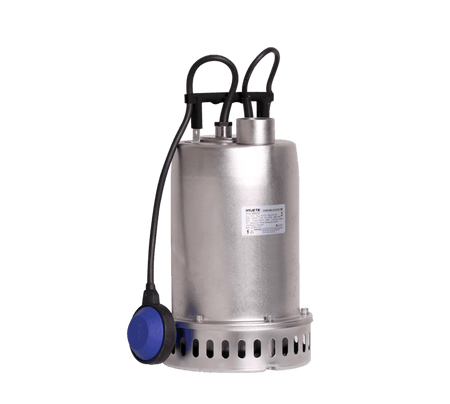

Hyjet HDS110-AV Stainless Steel Submersible Drainage Pump
Couldn't load pickup availability
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Got questions?
Feel free to get in touch
Ask an expert!
The Hyjet HDS110-AV is a 1.1 kW all stainless steel vortex submersible pump delivering 330 L/min to 18 m of head, with a vertical magnetic float. A double mechanical seal and AISI 304 construction throughout suit it to stormwater pits, lift wells, plant room sumps, water tanks and pools. Handles suspended solids up to 10mm.
Applications
- Stormwater pits
- Lift wells and plant room sumps
- General water transfer for water tanks
- Swimming pools
Features & Construction
- AISI 304 stainless steel pump body, motor casing, impeller and shaft
- Double mechanical seal - upper carbon ceramic / NBR, lower SiC/SiC/NBR in oil chamber
- Handles suspended solids up to 10mm
- Max operating depth 10m, max fluid temp 40C
- Two pole induction motor, 50Hz 1Ph 240V
- IPX8, insulation class F, thermal overload protection
- 10m power cable
- 2 year warranty

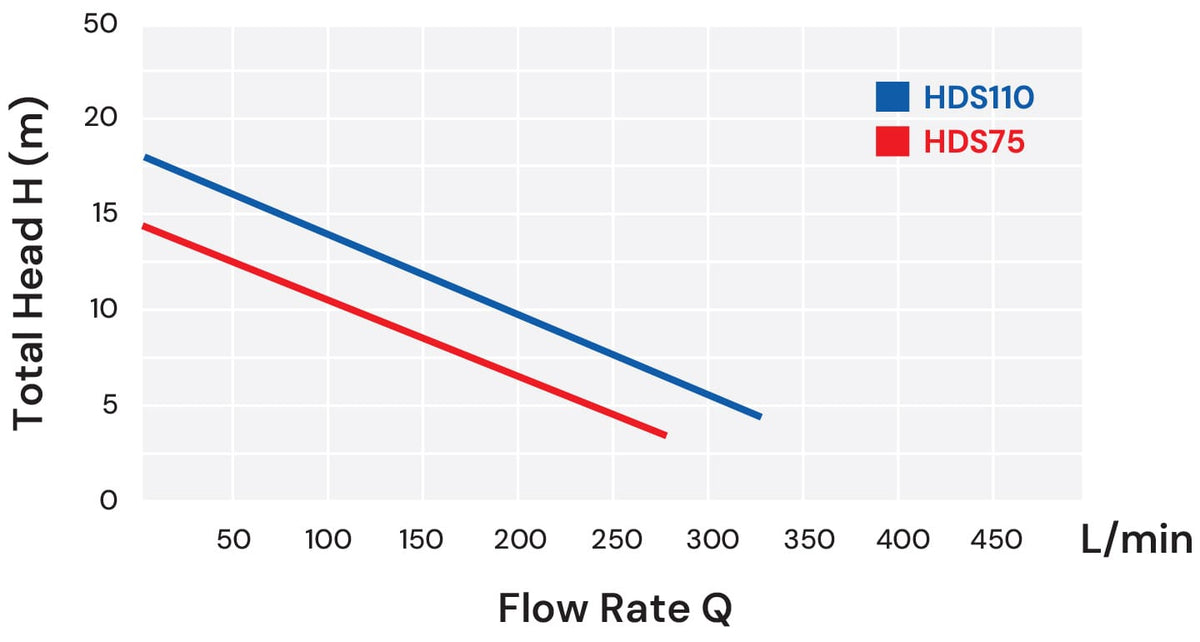

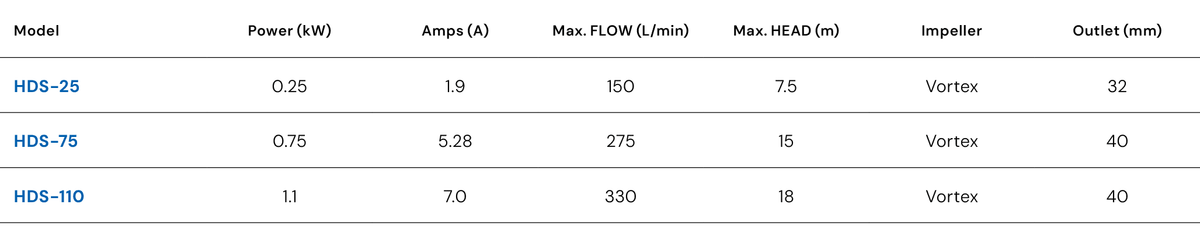

Technical Data
| Power | 1.1 kW |
| Current | 7.0 A |
| Max flow | 330 L/min |
| Max head | 18 m |
| Impeller | Vortex |
| Outlet | 40 mm |
| Suspended solids | 10 mm |
| Max operating depth | 10 m |
| Max fluid temperature | 40C |

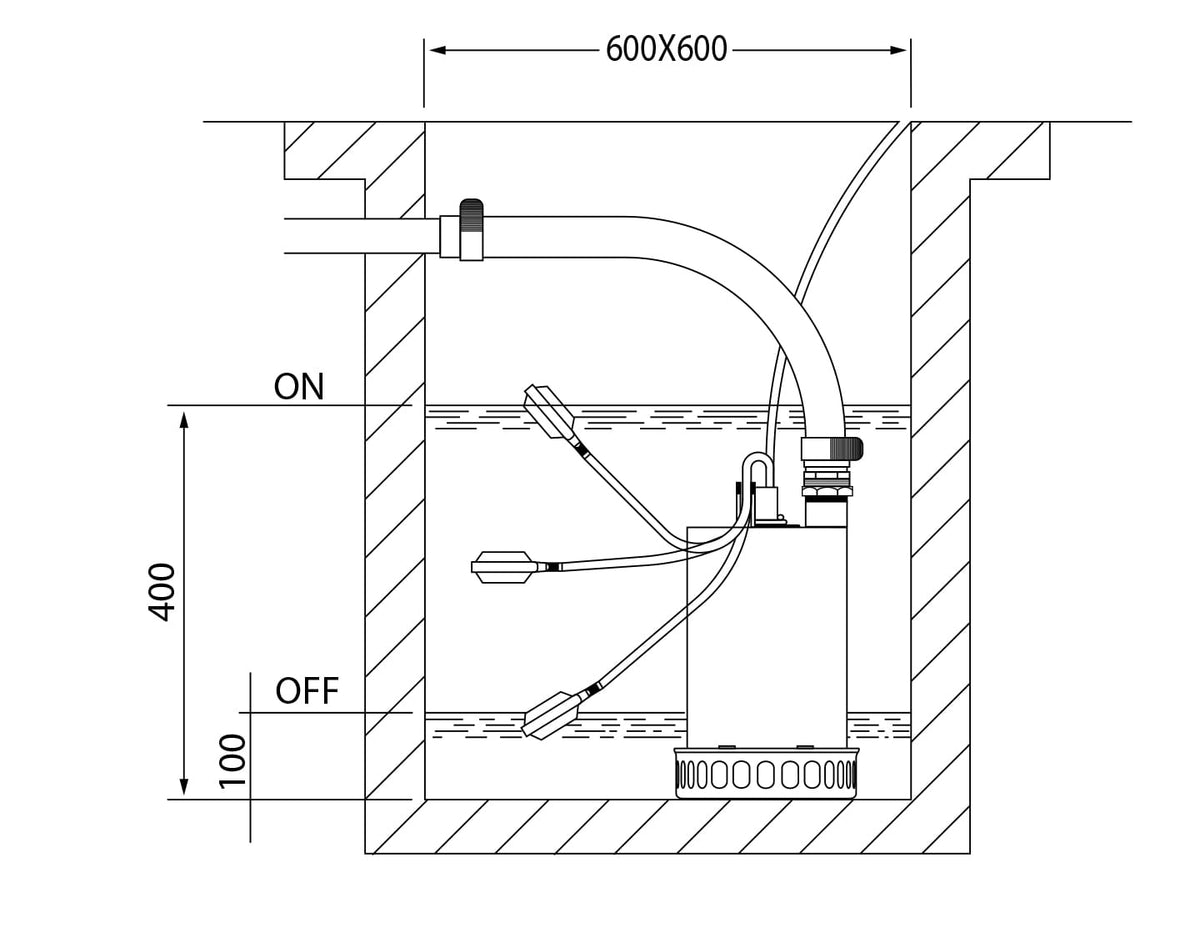

| Float | Vertical float, adjustable |
| Cable | 10 m |
| Dimensions | 370mm H x 210mm W |
| Weight | 12.6 kg |
