Hyjet DTR101 Sewage Grinder Pump
Couldn't load pickup availability
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Got questions?
Feel free to get in touch
Ask an expert!

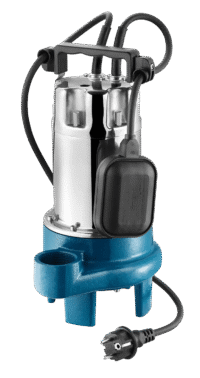

The Hyjet DTR101 is a 1.2 kW submersible sewage grinder pump for domestic and commercial applications, made in Italy by Pentax. The treated stainless steel grinder shreds textile and filamentous fibres, and the open impeller design handles wastewater with suspended solids. Available in single phase manual, single phase automatic float, and three phase manual.
Choose your configuration
| Variant | SKU | Supply | Level control | Current |
|---|---|---|---|---|
| 240V Manual | DTR101-1 | 240 V single phase | Manual, external control required | 5.3 A |
| 240V Float Switch | DTR101-1A | 240 V single phase | Float switch (automatic) | 5.3 A |
| 415V Manual (3 Phase) | DTR101-3 | 415 V three phase | Manual, external control required | 2.2 A |
Applications
- Domestic and commercial sewage transfer
- Wastewater containing textile or filamentous fibres
- Wastewater with suspended solids
Features & Construction

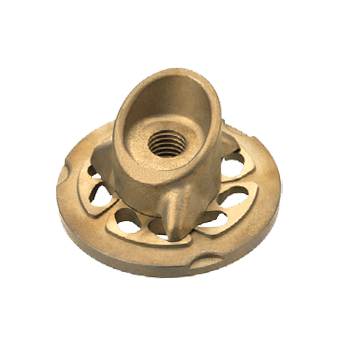

- Treated stainless steel grinder
- Open impeller design

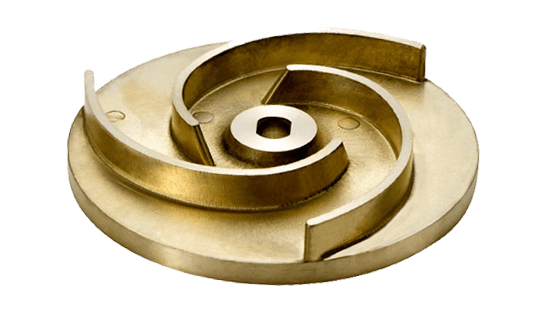

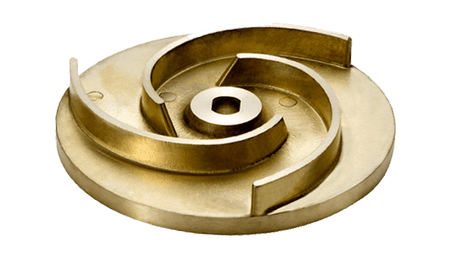

- Cast iron pump body with brass impeller
- Double mechanical seal with oil barrier, silicon carbide pump side
- Stainless steel AISI 430 motor shaft
- Max depth of immersion 5 m, liquid temperature 0 to 40C
- 10 m H07 RN8F cable, IPX8, insulation class F
- Made in Italy by Pentax Pumps
- 2 year warranty

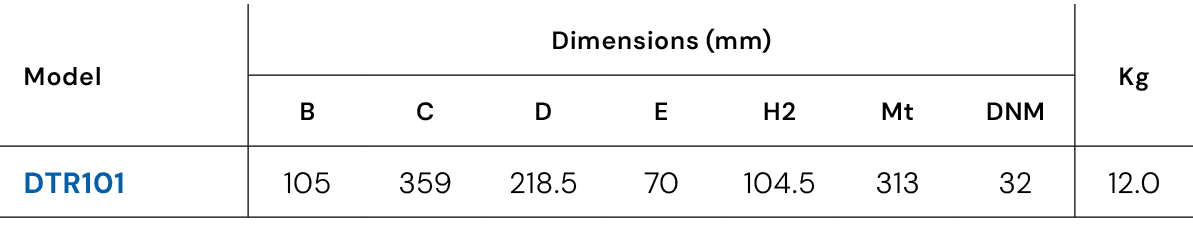

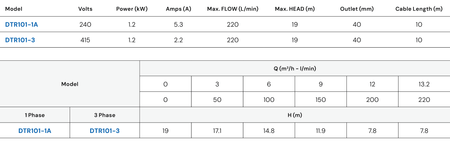

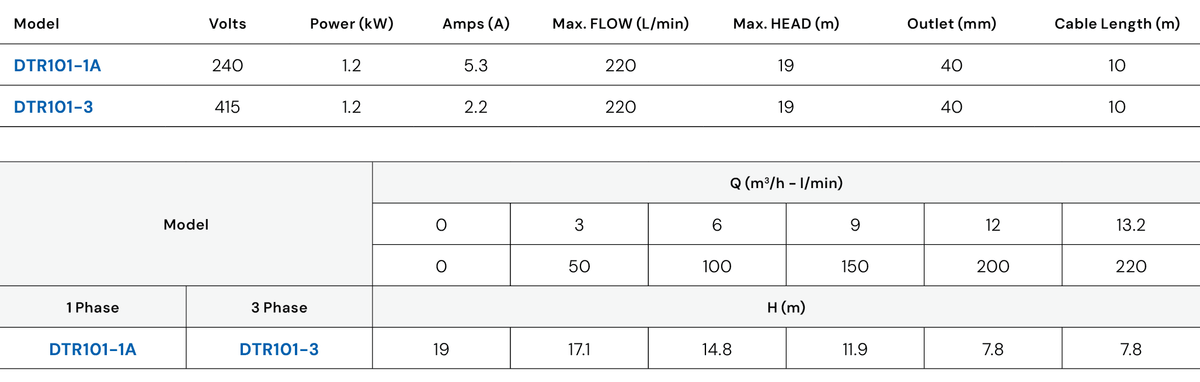

Technical Data
| Power | 1.2 kW |

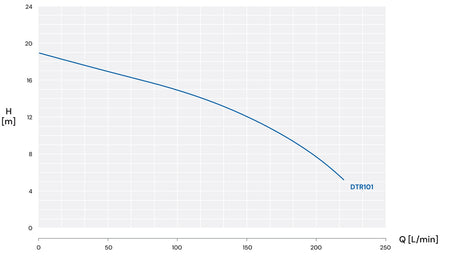

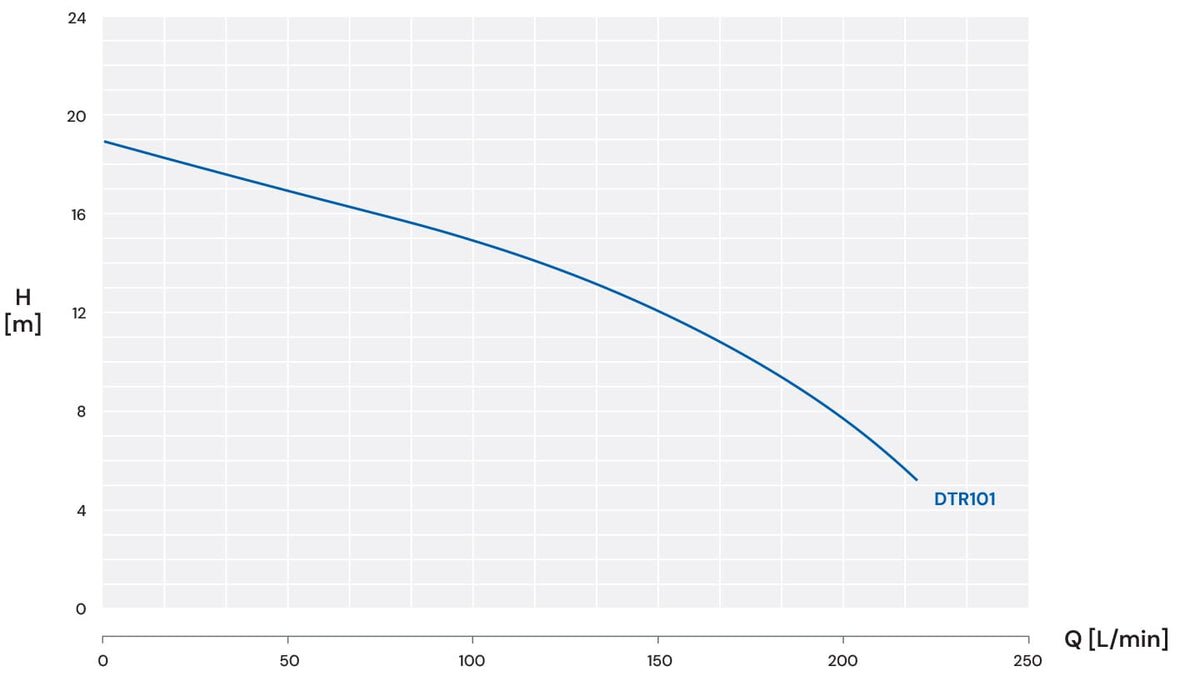

| Max flow | 220 L/min |
| Max head | 19 m |
| Pump style | Grinder |
| Outlet | 40 mm |
| Cable | 10 m |
| Max immersion | 5 m |
| Protection | IPX8, insulation class F |
| Weight | 12.0 kg |
| Made in | Italy |
