Hyjet DHWC2060 Dual Hot Water Circulator Pump Set

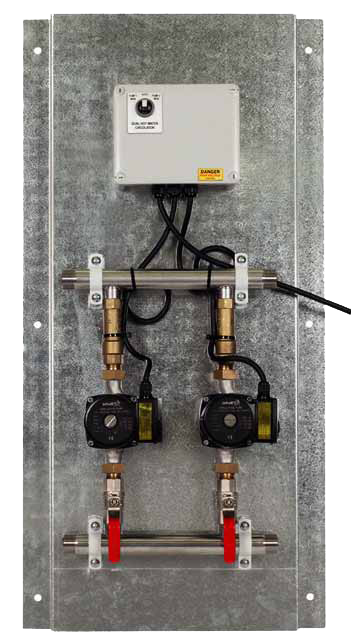

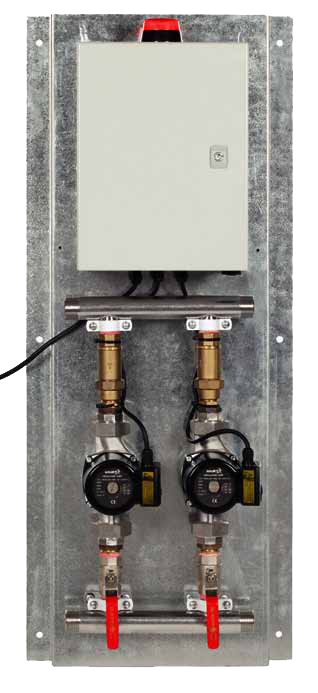

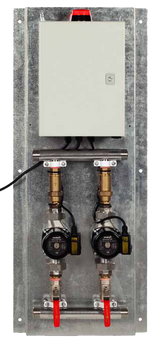

The Hyjet DHWC2060 is a pre-plumbed dual hot water circulator set built around two HPD20-60-150S stainless steel circulator pumps on a stainless steel manifold, mounted on a galvanised base plate with 25 mm BSPM connections. In Auto the pumps alternate duty every six hours. Choose between the Standard and Deluxe controller.

Choose your controller

Applications

• Domestic and commercial hot water ring main circulation
• Duty / standby hot water systems requiring redundancy
• Energy efficient timed hot water operation

Features & Construction

• Two Hyjet stainless steel circulator pumps on a stainless steel manifold
• Pumps automatically alternate duty every six hours in Auto
• Mounted on a galvanised base plate, pre-plumbed with dual check valves and ball valves
• In-line pump casing and barrel unions for easy install and maintenance
• 3-speed manual adjustment
• Manual bleed on start-up
• Quiet operation, low power consumption
• 2 year warranty

Construction

• Pump casing: Stainless steel
• Motor shaft: Ceramic
• Impellers: PP composite
• Bearings: Ceramic
• Seals: EPDM
• Motor IP44, insulation class F
• In-built capacitor and thermal protection

Operating Limits

• Clean water without abrasives or suspended solids
• Max. liquid temperature 110C
• Max. ambient temperature 40C
• Max. operating pressure 10 Bar

Technical Data
